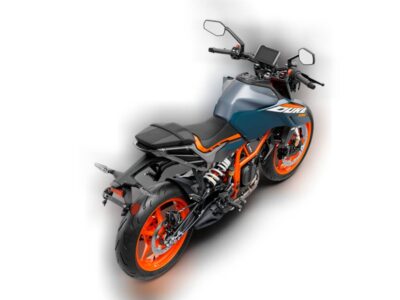

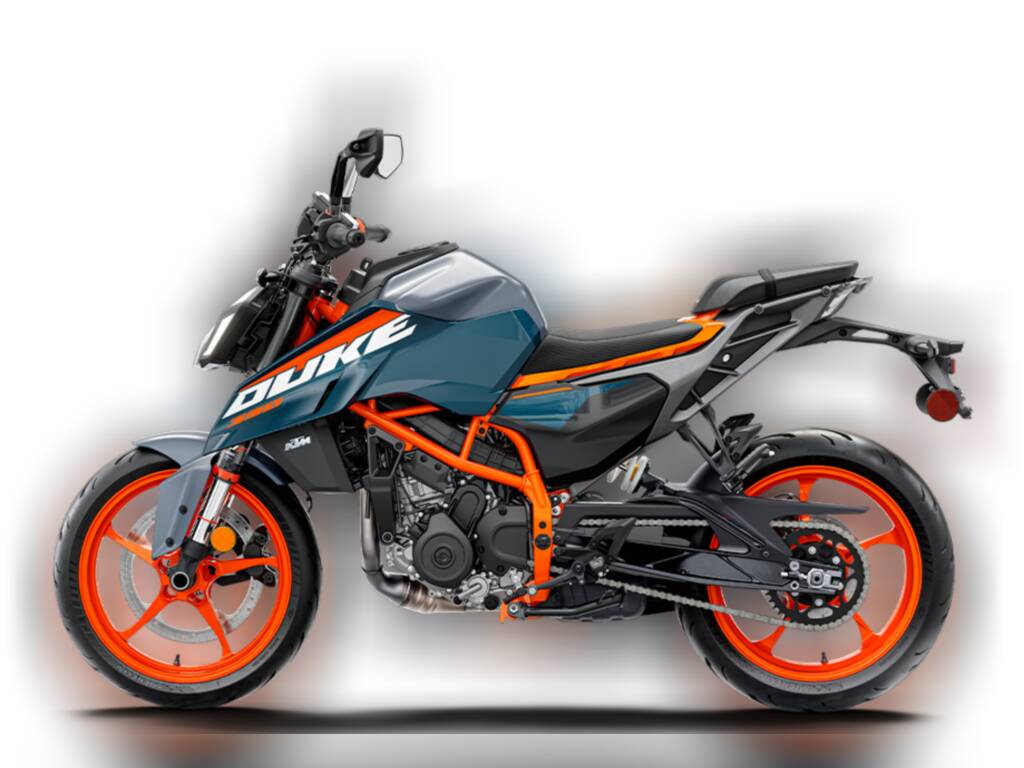

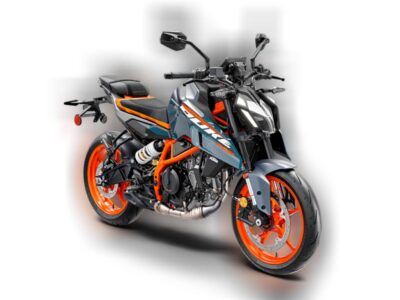

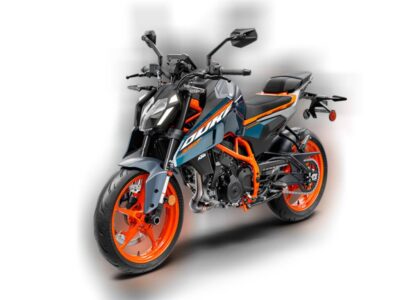

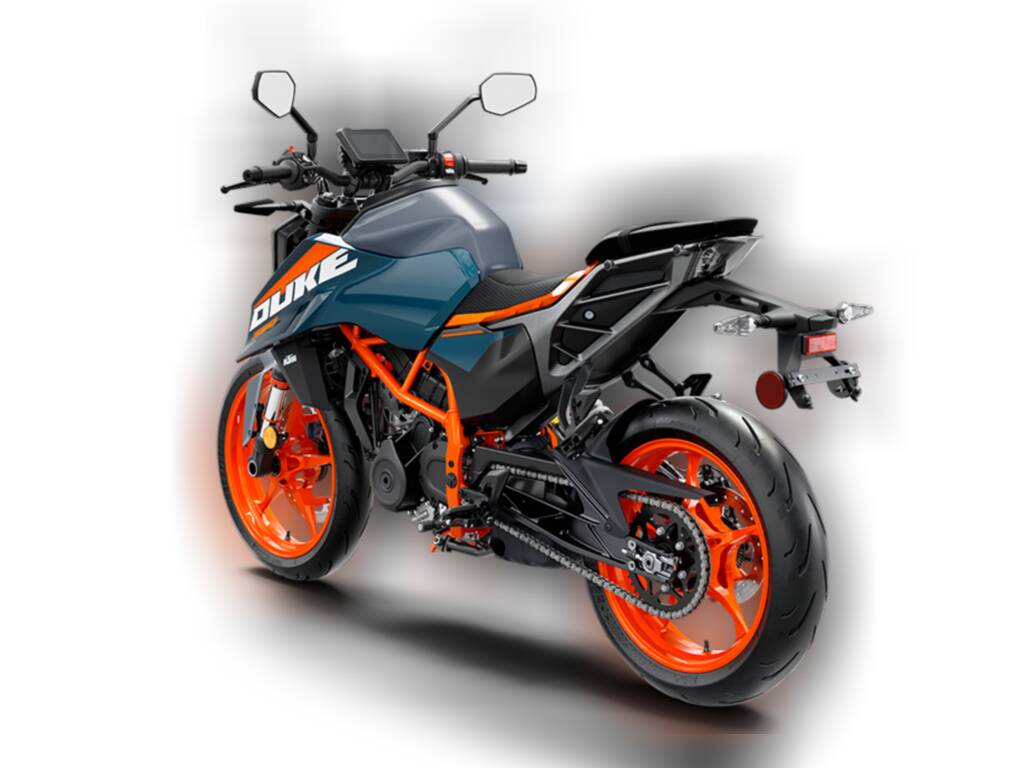

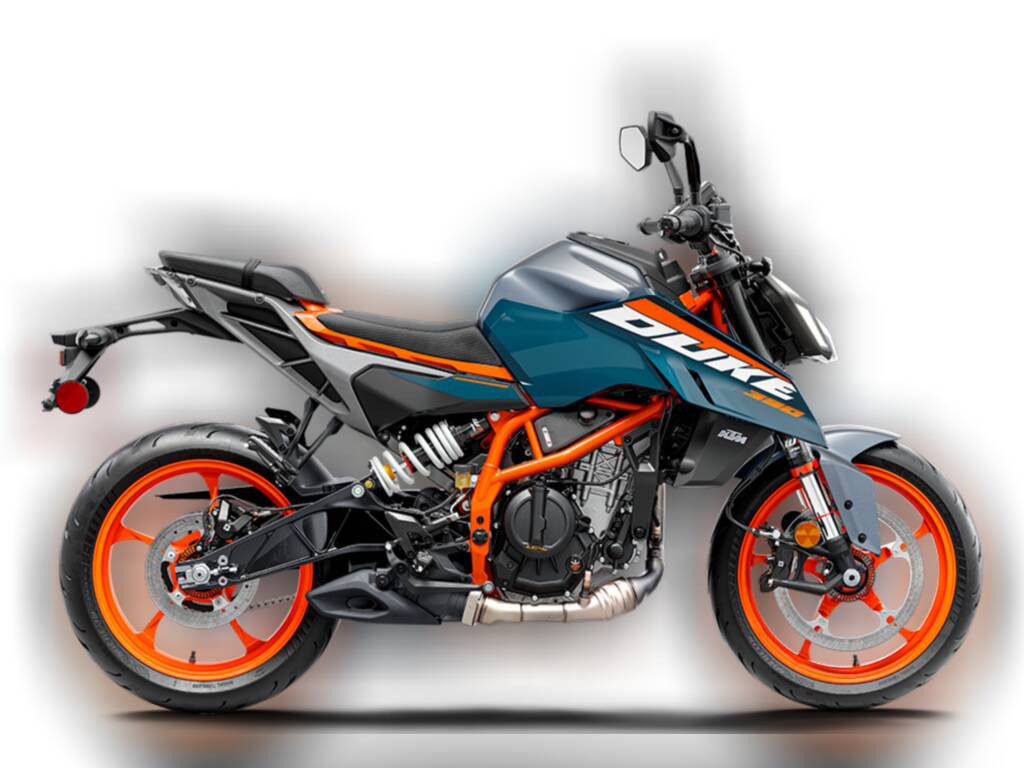

2024 KTM 390 DUKE, 2024 KTM 390 DUKE

With the all-new 2024 KTM 390 DUKE, the world around you becomes your very own gymkhana. Bringing exceptional agility, lightweight handling, and punchy performance to the street, this middle-weight bruiser is ready to take on any twists or turns. Packing state-of-the-art rider aids, an all-new frame, adjustable suspension – and aggressive new looks – the 2024 KTM 390 DUKE wears the crown when it comes to carving up the asphalt.

Adjustability

Finding that perfect balance when attacking your favorite stretch of tarmac, or sliding around some tight cone-marked corners is easy thanks to the KTM 390 DUKE’s 43 mm WP APEX open cartridge fork with adjustable compression and rebound. On the rear, the WP APEX Separate piston shock absorber can also be set for rebound and preload, to find the ideal mix between comfort and traction.

Graphics

Premium looks come standard on the 2024 KTM 390 DUKE. A high-quality, multi-layered, wet-painted finish in either all-new Electronic Orange or Atlantic Blue with clear-gloss graphics perfectly set off the unique DUKE textured seat cover. Make no mistake, this is 100% DUKE with 110% street-cred.

Engine

Boasting the latest generation in LC4c engines, the 2024 KTM 390 DUKE muscles up with a 399 cc capacity, more power, smoother acceleration, and lighter overall weight than before. Drawing from years of experience in the small engine game, the 2024 KTM 390 DUKE now also features an improved gearbox and an optimized cylinder head. Oh, and did we mention it is also READY TO RACE?

Specification:

ENGINE

• TORQUE – 39 Nm
• TRANSMISSION – 6-speed
• BATTERY CAPACITY – 8 Ah
• COOLING – Liquid cooled
• POWER IN KW – 33 kW
• STARTER – Electric starter
• STROKE – 64 mm
• BORE – 89 mm
• CLUTCH – PASC antihopping clutch, mechanically operated
• DISPLACEMENT – 398.7 cm³
• EMS – Bosch EMS with RBW
• DESIGN – 1-cylinder, 4-stroke engine
• LUBRICATION – Wet sump

CHASSIS:

• ABS – Bosch 9.3 MP Two Channel (Supermoto ABS)
• FRONT BRAKE DISC DIAMETER – 320 mm
• REAR BRAKE DISC DIAMETER – 240 mm
• FRONT BRAKE – Four-piston radial fixed calliper, brake disc
• REAR BRAKE – 2 piston floating caliper
• CHAIN – 520 X-Ring
• FRAME DESIGN – Steel trellis frame, powder coated
• FRONT SUSPENSION – WP APEX 43
• REAR SUSPENSION – WP APEX – Monoshock
• SEAT HEIGHT – 820/800 mm
• SUSPENSION TRAVEL (FRONT) – 150 mm
• SUSPENSION TRAVEL (REAR) – 150 mm
